Prestressing Jacks

EKC have a range of single wire / strand stressing jacks designed to stress from 4mm up to 15mm.
The SA range of jacks are fitted with a hydraulic lock-off facility to provide secure power seating of the wedges in the anchorages.
The jacks can be used for both pre-tensioning and post-tensioning and to cater for different situations they are available in various stroke lengths from 200mm to 800mm.

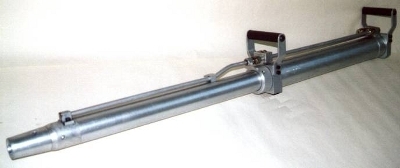

SA90 Jack

The SA90 is a 90kN capacity, double acting and front gripping jack designed to stress all wire sizes from 4 to 7mm diameters and strand up to 9.6mm diameter.

Specification

Maximum Jacking Force 90kN (9 Ton)
Ram Area 20.2cm² (3.135in²)
Maximum Hydraulic Pressure 445bar (6450psi)
Stroke of Jack, 200-800mm (7.87 - 31.50in)
Weight of Jack (200mm stroke) 15kg(33lb)

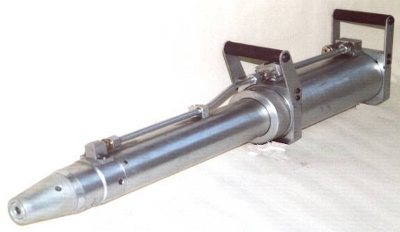

SA250 Jack

The SA250 is a 250kN capacity, double acting and front gripping jack designed to stress all strand sizes from 7 to 15mm diameter.

Specification

Maximum Jacking Force 250kN (25 Ton)
Ram Area 44cm² (6.82in²)
Maximum Hydraulic Pressure 567bar (8220psi)
Stroke of Jack, 200-650mm (7.87 - 25.60in)
Weight of Jack (200mm stroke) 26kg(57lb)

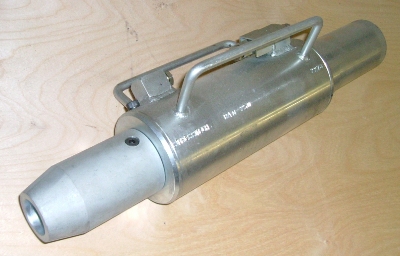

RM250 and RM320 Jacks

The RM250 and RM320 jacks were developed for use in post tensioning applications and where space is limited.
These jacks offer the following features:

250/320kN Capacity
Suitable for use with 13, 15 and 18mm strand
(22mm strand RM320 only)
Light weight and compact dimensions
Rear gripping jack, which offers simple maintenance
Extremely robust construction

RM250 Specification

Maximum Jacking Force - 250kN (25 Ton)
Ram Area - 43.2cm² (6.7in²)
Maximum Hydraulic Pressure - 576 bar (8,360psi)
Stroke of Jack - 125mm (5in)
Weight of Jack - 18kg (40lb)

RM320 Specification

Maximum Jacking Force - 320kN (32 Ton)
Ram Area - 68.9cm² (10.68in²)
Maximum Hydraulic Pressure - 465 bar (6,735psi)
Stroke of Jack - 150mm (5.9in)
Weight of Jack - 27kg (59.4lb)
